X-Mast - The LED Light Tower

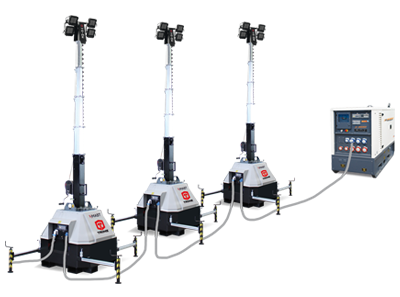

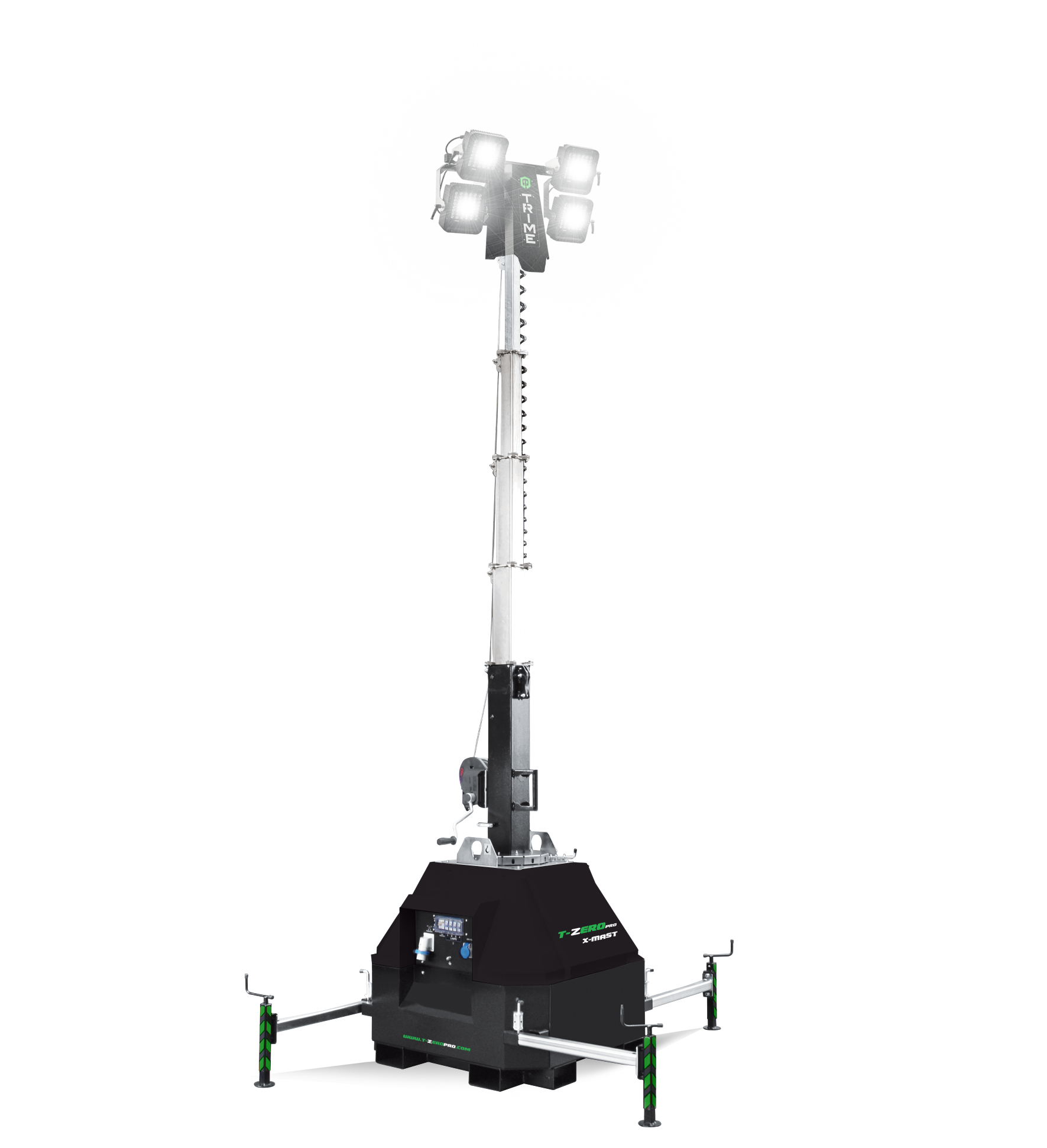

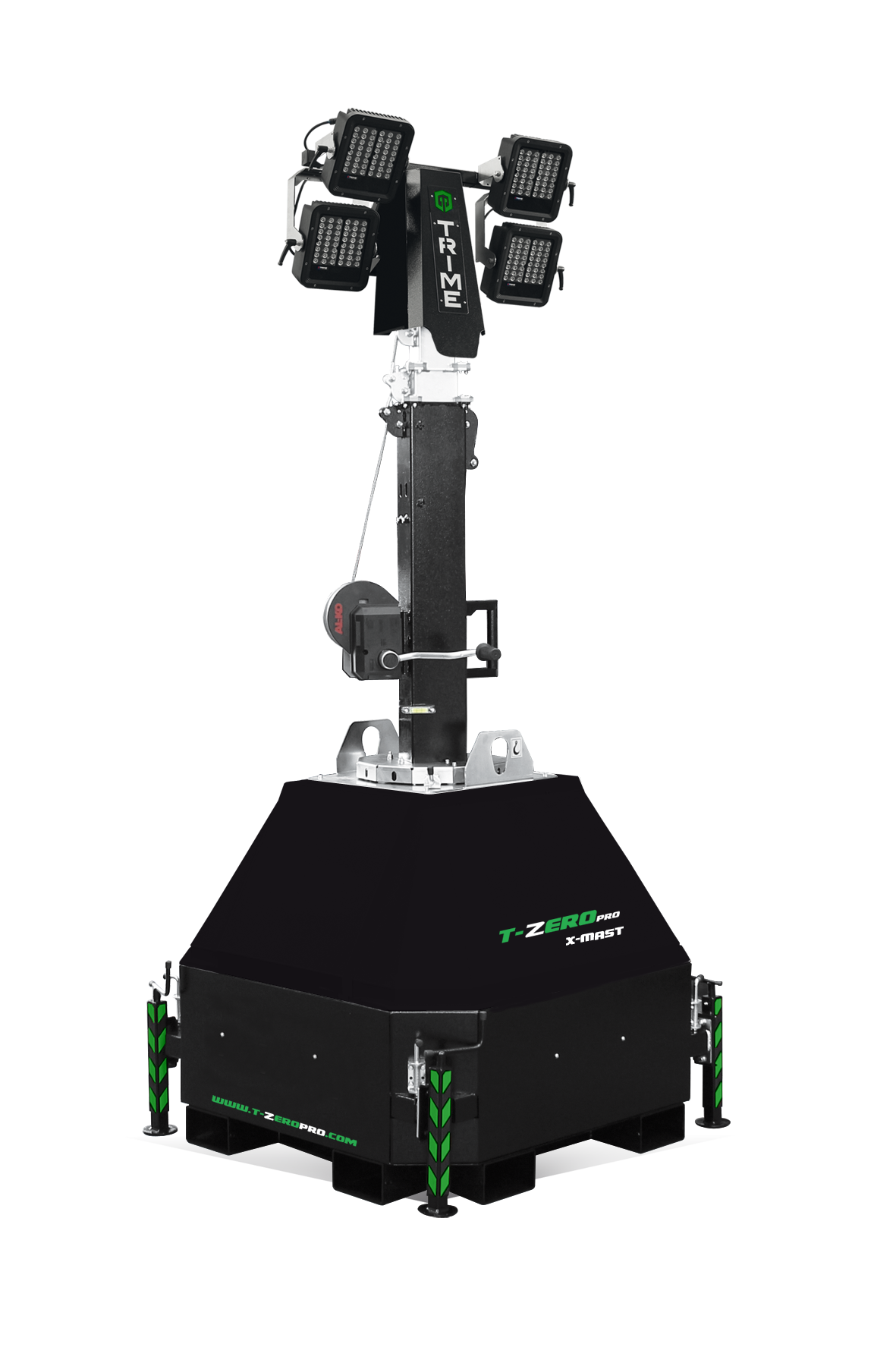

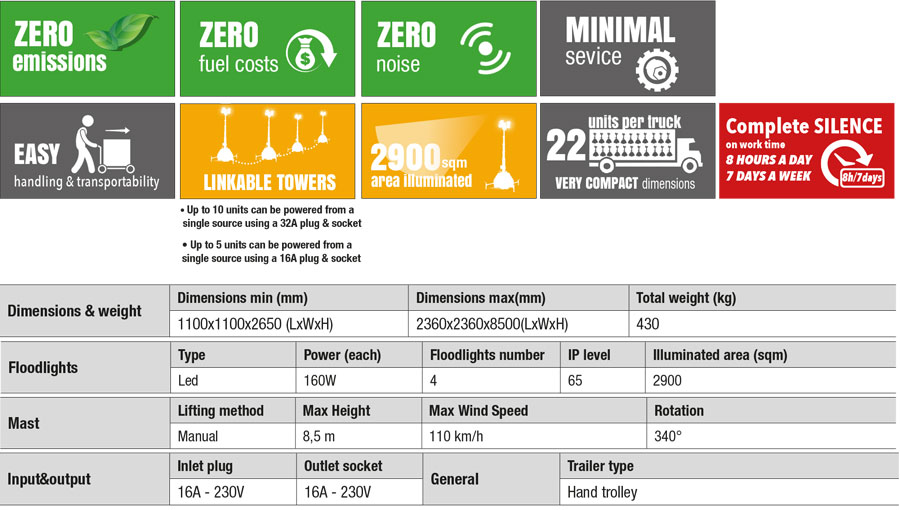

There are two versions of the Trime X-MAST lighting tower. One has four 160w energy-saving LED lamps, the other is fitted with four 320w LED lights. Both versions feature a 9-metre vertical mast and can be powered by either ordinary mains or a portable generator. Up to ten X-MAST lighting sets can be linked together to increase the spread of illumination. The X-MAST emission-free tower light operates totally silently making it ideally suited for lighting car parks, construction compounds, campsites and rail, hire and rental markets.



  • Multi-directional adjustable and tiltable floodlights
  • 8.5 meters vertical tower, 340° rotatable
  • Manual lifting system by winch complete with auto-braking system
  • Galvanized metalworks
  • 80 μm powder coating
  • Very compact dimensions for easy handling & transportability, up to 22 units per truck
  • Sides lifting eyes
  • Top and sides forklift pockets for effective handling
  • Guided main coiled cable to avoid damage during tower operation
  • Circuit breaker for electrical protection against overload
  • Certified wind stability up to 110 km/h
  • 4 extendable & height-adjustable stabilizers
  • 230V inlet plug and outlet socket to connect in series more units
