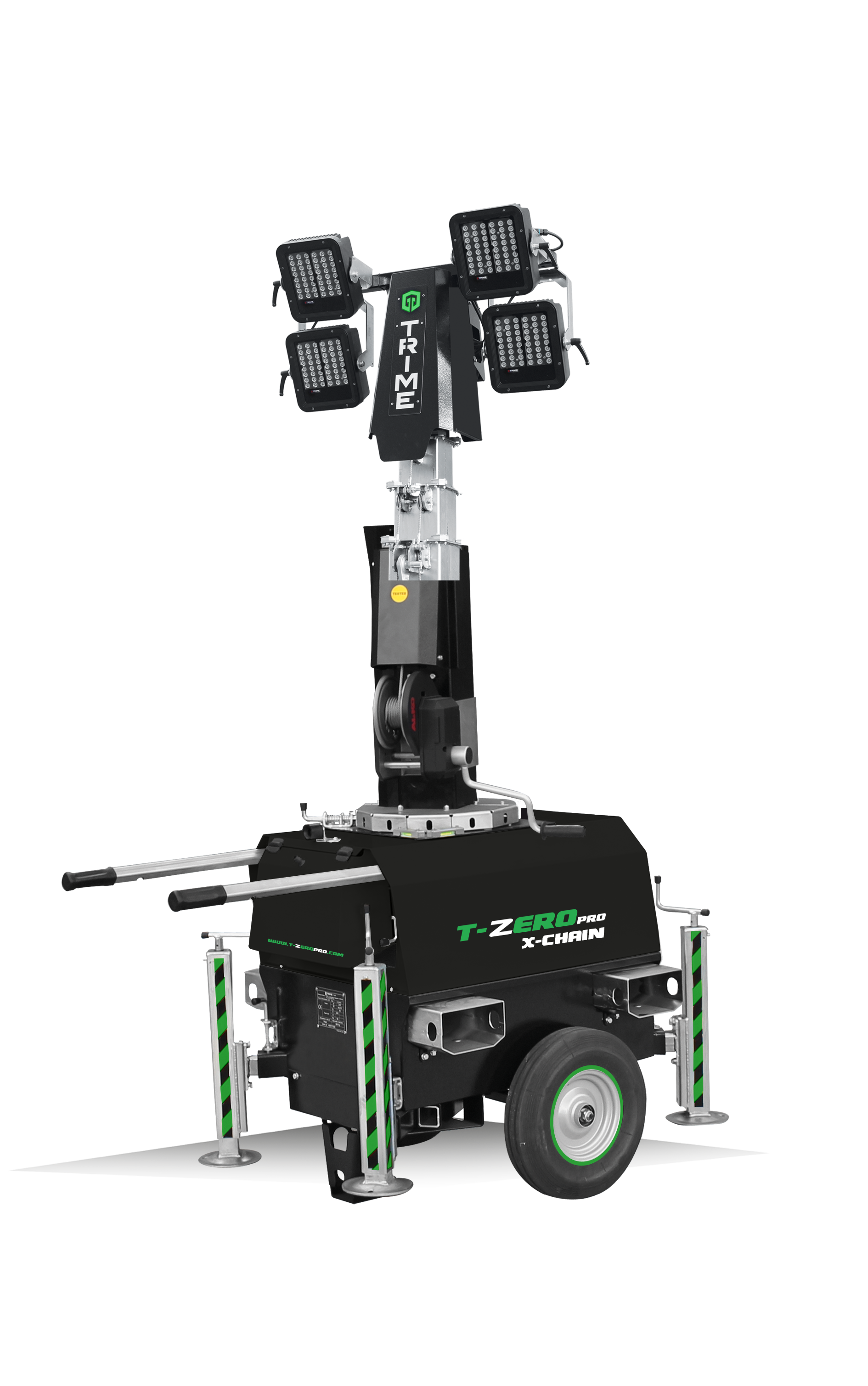

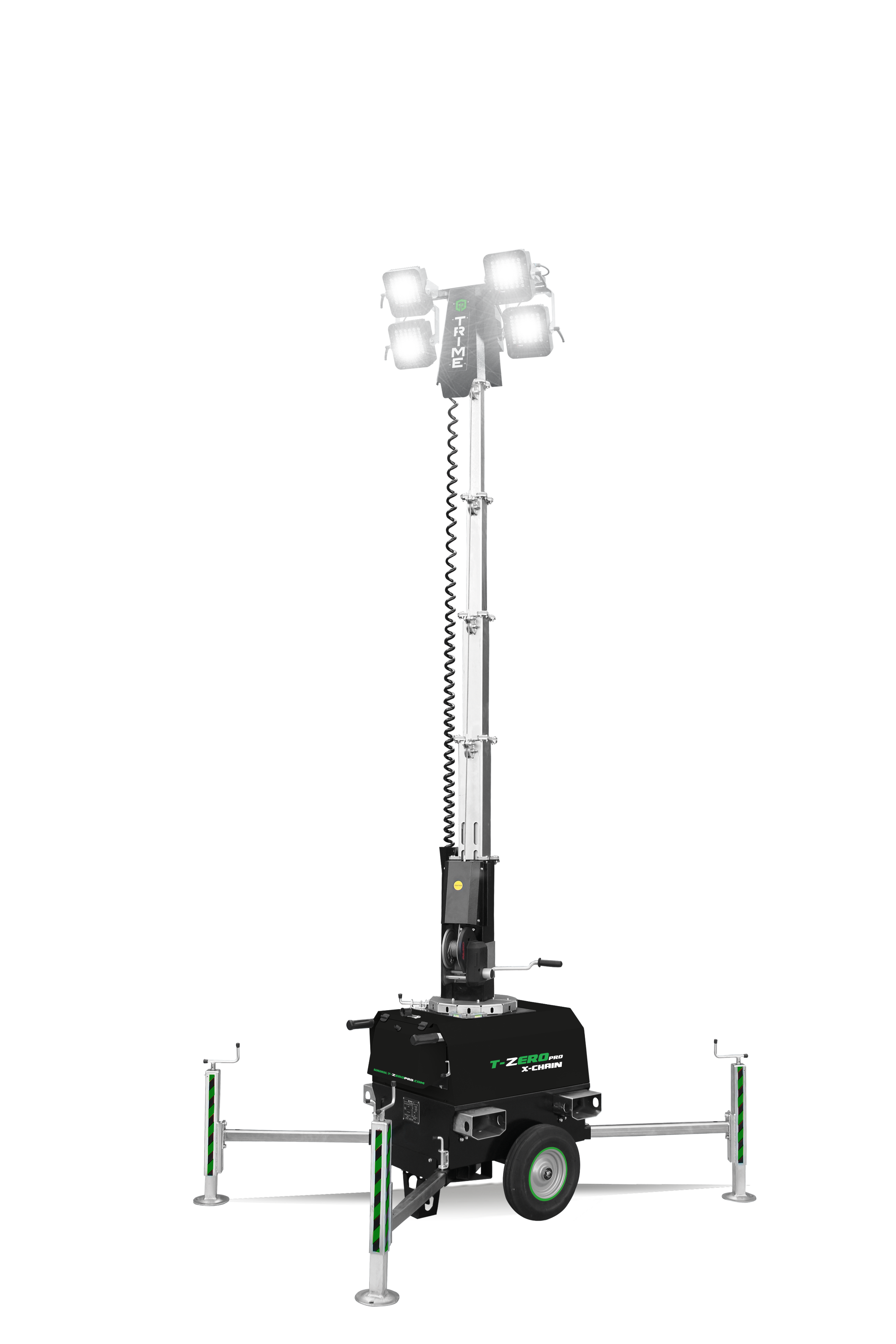

Trime X-CHAIN Lighting Towers

There are three types of Trime X-CHAIN lighting towers. One features four 160w energy-saving LED lamps, the second has four 150w anti-glare lamps, making it the perfect lighting tower for television and film sets. There is also an X-CHAIN ATEX lighting tower for safe illumination in explosive areas, such as oil and gas refineries. All three models feature a 7-metre vertical mast with a patented mast emergency brake system. The Trime X-CHAIN is a portable lighting tower, with zero noise and emissions. The versatile X-CHAIN can be used in most settings where bright, safe illumination is a requirement. The X-CHAIN is ideally suited for the hire and rental markets.



  • Multi-directionally adjustable and tiltable floodlights
  • 6 sections vertical tower 7meters, 340° rotatable
  • Manual lifting system by winch complete with auto-braking system
  • Galvanised metalworks
  • 80 μm powder coating
  • Very compact dimensions for easy handling & transportability, up to 33 units per truck
  • Light weight for improved manoeuvrability
  • Central lifting and eye forklift pockets for effective handling
  • Guided main coiled cable to avoid damage during tower operation
  • Circuit breaker for electrical protection against overload
  • Certified wind stability up tp 110 mph
  • 4 extendable & height adjustable stabilisers
  • On board levels for guidance during stabilisation
  • Patented mast emergency brake which prevents the falling of the mast in case of cable failure
  • Top electrical box protection cover
  • 2 Retractable galvanised handles
  • Light Sensor as standard feature
  • Bolted Central lifting eye
  • Also available in 110v 32A
