Diesel Powered Site Light

The Trime X-ECO LED lighting tower is the leading tower light within the construction rental markets and is widely accepted as the industry standard. The X-ECO LED comes equipped with a whole host of features and benefits for contractors working on highway contracts, construction sites, and trackside projects. The X-ECO LED tower light is also ideally suited for outside events, shows and the hire and rental markets. Energy-saving LED lighting delivers the illumination and a fuel-efficient diesel engine provides the power.


  • Multi-directional adjustable and tiltable floodlights
  • 6x160W, 48V LED lights
  • 48V power between the generator and the lights
  • 7 section hydraulic vertical tower 8.5 m, 340° rotatable
  • Amoss safety system
  • Galvanised metalworks
  • 80 μm powder coating
  • Compact dimensions for easy handling & transportability
  • Central lifting eye, longitudinal and transversal forklift pockets for effective handling
  • Plug & play, colour coded cables and connectors
  • Light heads certified protection level IP67
  • Guided main coiled cable to avoid damage during tower operation
  • Control panel alarms for engine protection and fuel level indicator
  • Circuit breaker for electrical protection against overload
  • External emergency stop button
  • Fully bunded tank, 110%
  • Certified wind stability up tp 110 km/h
  • 4 height adjustable stabilisers
  • On board levels for guidance during stabilisation

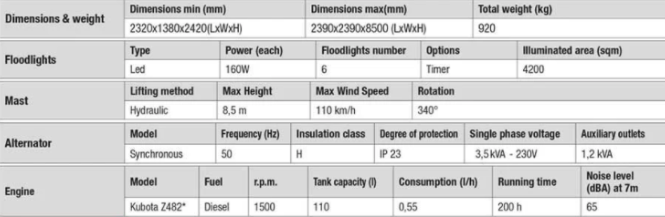

Technical data arrow-down +
