6000 litres

capacity

HOW DOES IT WORK?

The dirty water from the Interceptor collection tank is typically made up by a range of contaminants such as sand and mud in suspension, aggregates and residues of hydrocarbons. This requires a variety of filters to remove these pollutants.

In the X-60 Filtration Tank each of the three tanks holds 2000ltrs of water, so 6000ltrs in total. The tanks are able to separate mud, oil and hydrocarbons through a system of filtration and the settlement of sedimentation.

The first tank allows heavy sediment to sink to the bottom of the tank whilst the hydrocarbons float to the top. The water is then filtered off to the second tank.

The second tank is where the hydrocarbons are removed via the use of coalescing filtration. The water is then passed through to the third tank which passes the clean lightly chlorinated water through a fine filter as it delivers water via a booster pump to the pressure washer.

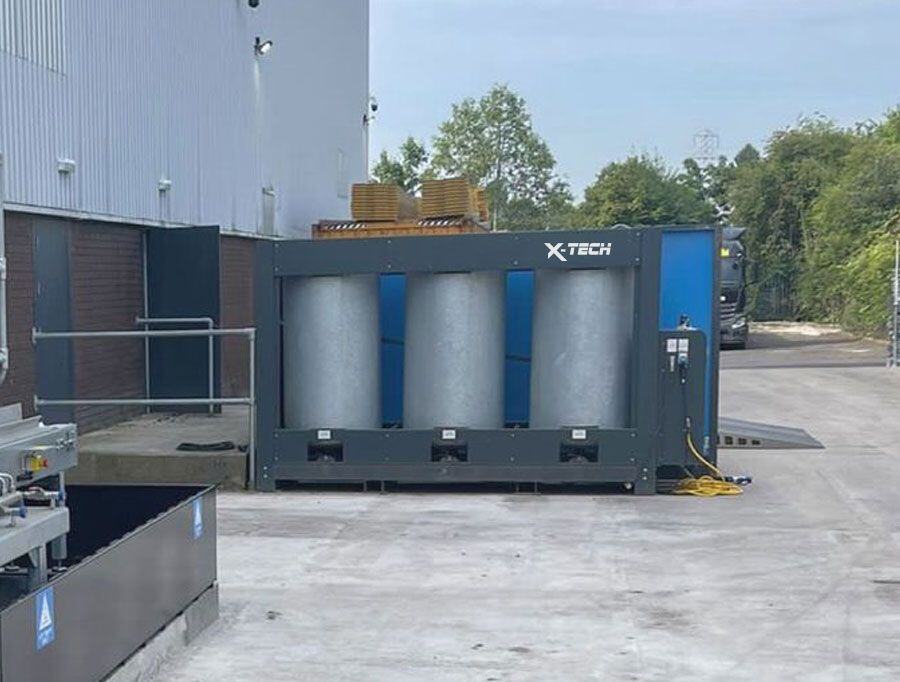

The X-60 Tanks are ready assembled in a stainless steel frame for ease of handling and installation.

applications_ok-8f855e85
warning-icon
It should be remembered that the solids and contaminants removed from the X-60 should be disposed of with your contaminated waste and disposed of accordingly.

ACTIVE PURIFICATION WITH BIOLOGICAL TREATMENT

These tanks can also be equipped with active purification systems. We use a heavy-duty filtration system where the wastewater is subjected to an intensive biological treatment which uses specific harmless bacteria to break organic substances dissolved in the water. The waste water is subjected to an intensive biological treatment in which, through the development of specific bacterial strains, kills dissolved organic matter and detergents. Microbial powders within the oxidation tank, a pre-set amount of micro-organisms is dosed through a dozer. The dosing pump is pre-installed and the setting is done in for the customer’s need.

The transportable purifiers X-Splash Heavy Duty use a biological purification system through effective mixtures of microbial powders, creating purified wastewater suitable for reuse without any special waste.

The Filtration Tanks are dispatched already assembled into a stainless-steel frame for ease of handling and installation. The electrical components necessary for this Heavy Filtration Tank (control panel – blower and air compressor)
