HOW DOES IT WORK?

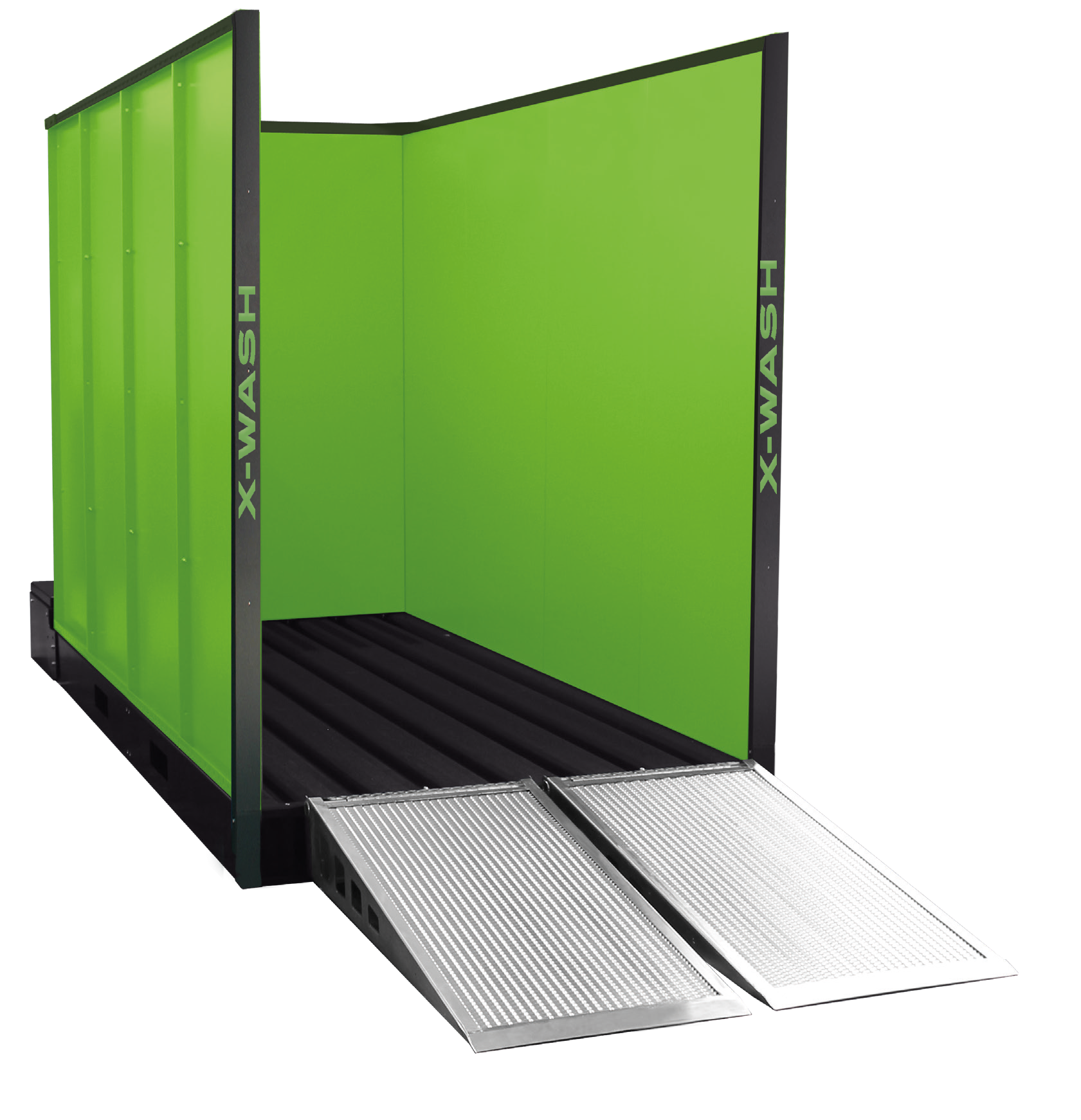

The X-1 wash area is approx. 1500mm wide and 3000mm deep.
The wash area is accessible via two galvanised anti-slip ramps. To
reduce the risk of overspray the X-1 has 2200mm high walls on
three sides.
The wash area is accessible via two galvanised anti-slip ramps. To
reduce the risk of overspray the X-1 has 2200mm high walls on
three sides.
The washbay floor pan directs dirty water and any solids towards
the rear of the wash area and into a solids collection tank. Inside
the rear solids collection tank are three dams that retain the solids
but allow the water to filter through towards an outlet. At the outlet
end of the rear collection tank is a float switch. When the water
reaches a specified level the float switch activates a diaphragm
pump housed in the Filtration Tank. This pump then sucks the
liquid out of the solids collection tank into the Filtration Tank.
The Filtration Tank then, through the use, of a number of filters and
weirs filters out the remaining contaminants and lightly chlorinates
the liquid leaving the clean water ready to be reused in the
washbay. All the filters are easily removed and replaced to ensure
continuity of service.

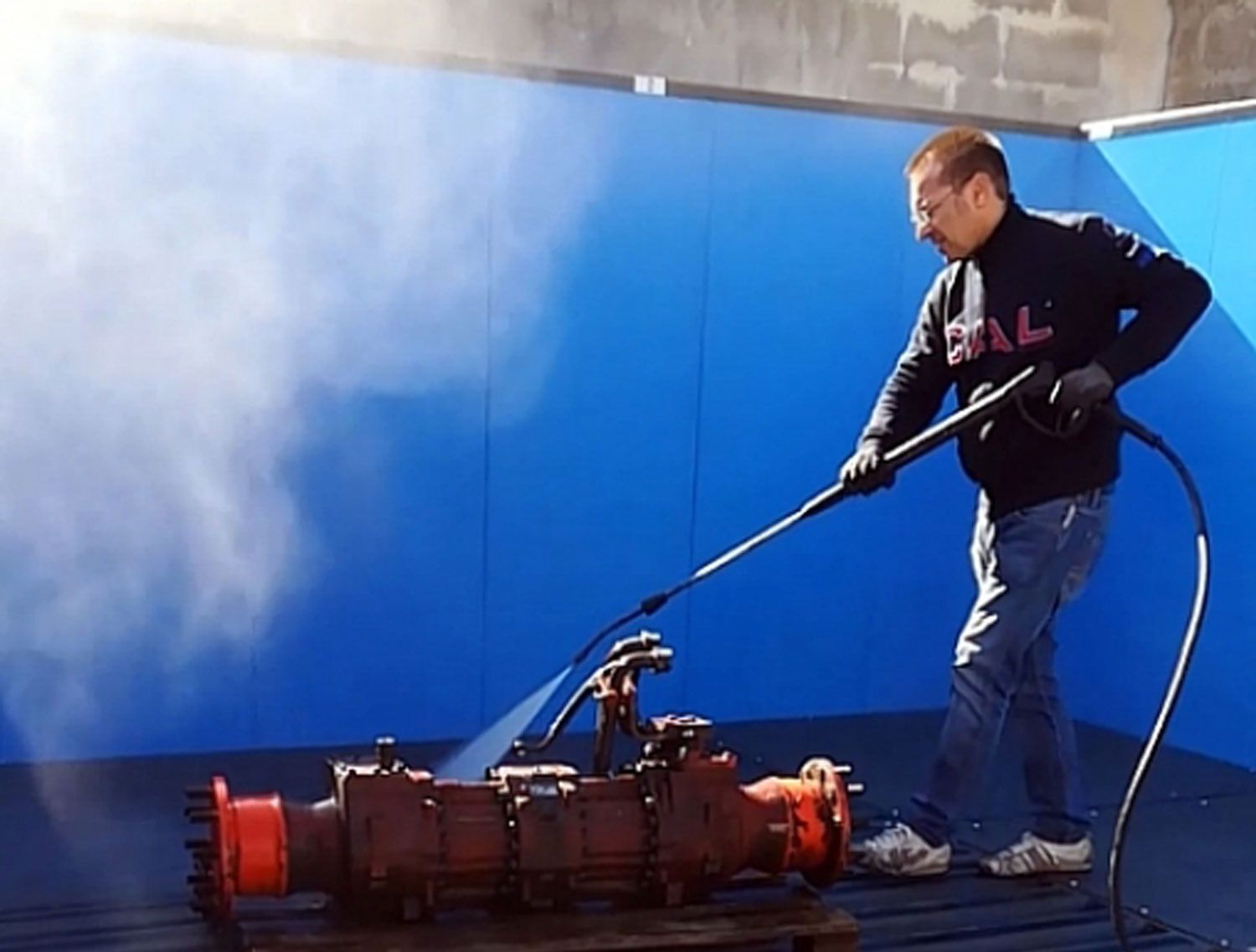

When the end user operates their pressure washer the booster
pump housed within the filtration tank activates to supply the
pressure washer with water as required.
Easy to assemble
Easy to disassemble
Easy to remove
