HOW DOES IT WORK?

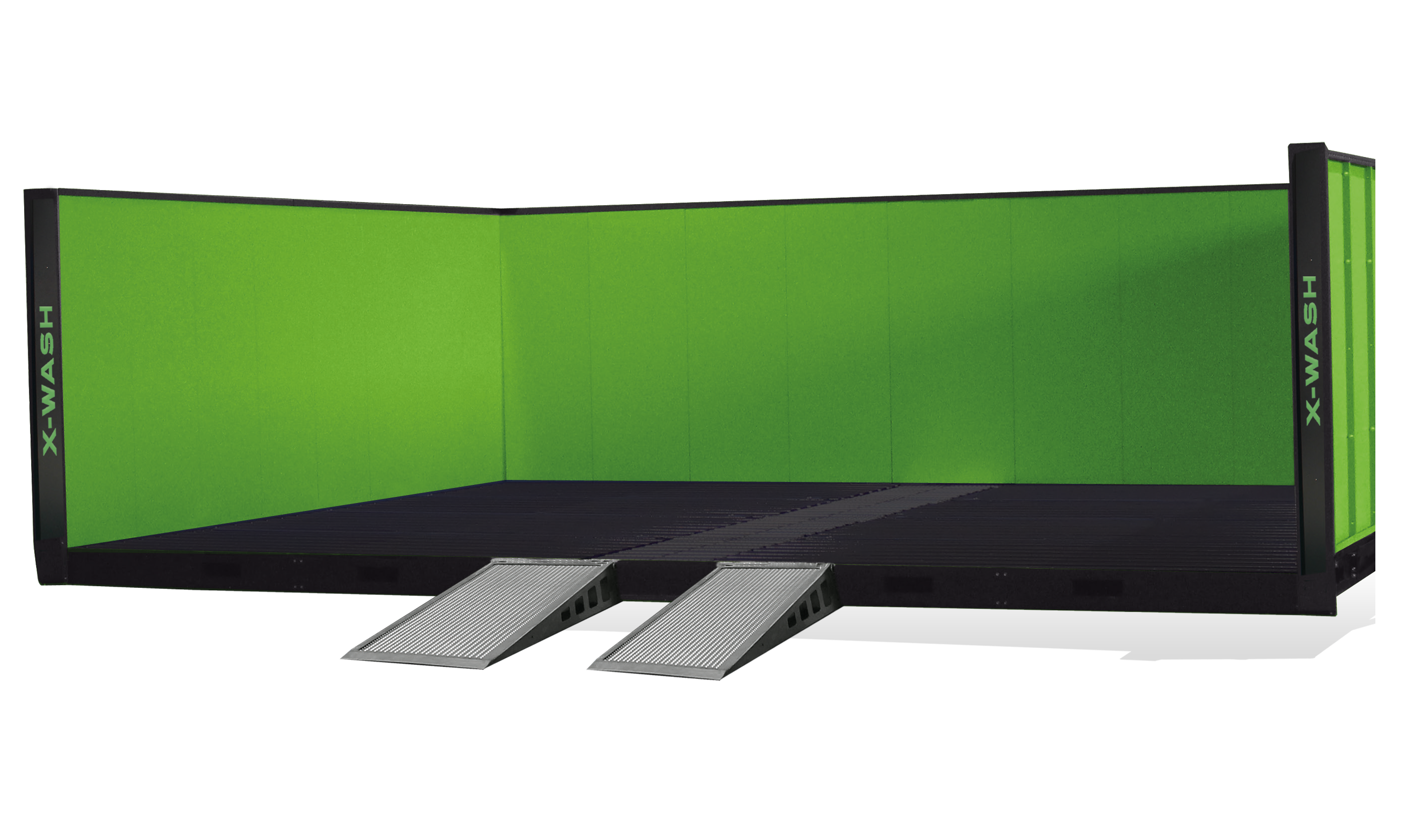

The X-8 wash area is approx. 6000mm wide and 6000mm deep and
comprises eight modular base sections 1500mm x 3000mm. The wash
area is accessible via two galvanised anti slip ramps as standard. To
reduce the risk of overspray the X-8 has 2200mm high walls on three
sides. More ramps can be ordered as an option.
comprises eight modular base sections 1500mm x 3000mm. The wash
area is accessible via two galvanised anti slip ramps as standard. To
reduce the risk of overspray the X-8 has 2200mm high walls on three
sides. More ramps can be ordered as an option.
The washbay floor pan directs dirty water and any solids towards
the sides of the wash area and into the solids collection tanks. Inside
the solids collection tanks are three dams that retain the solids but
allow the water to filter through towards an outlet. At the outlet end
of the collection tanks is a float switch. When the water reaches a
specified level the float switch activates a diaphragm pump housed
in the Filtration Tank. This pump then sucks the liquid out of the solids
collection tanks into the Filtration Tank.
The Filtration Tank then, through the use of a number of filters,
removes the remaining contaminants and lightly chlorinates the liquid
leaving the clean water ready to be reused in the washbay. All the
filters are easily removed and replaced to ensure continuity of service.
When the end user operates their pressure washer the booster pump
housed within the filtration tank activates to supply the pressure
washer with water as required.
Easy to assemble
Easy to disassemble
Easy to remove
