HOW DOES IT WORK?

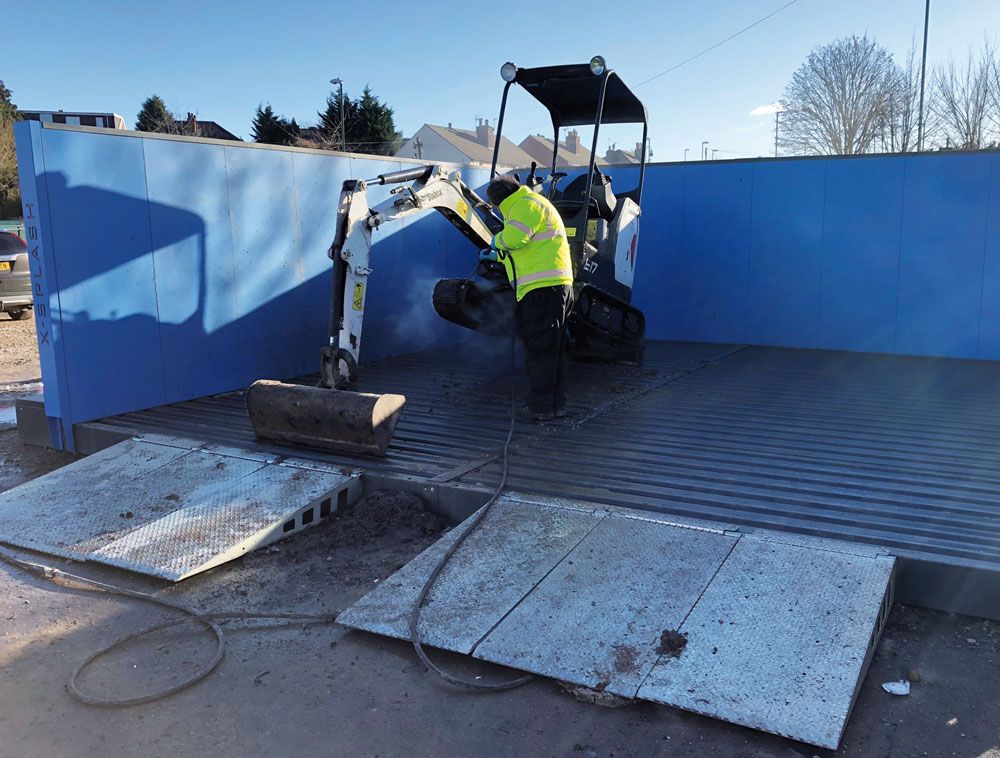

The X-4 wash area is approx. 3000mm wide and 6000mm deep and
comprises four modular base sections 1500mm x 3000mm. The wash
area is accessible via two galvanised anti slip ramps as standard. To
reduce the risk of overspray the X-4 has 2200mm high walls on two
sides. More ramps and a third wall can be ordered as an option.
comprises four modular base sections 1500mm x 3000mm. The wash
area is accessible via two galvanised anti slip ramps as standard. To
reduce the risk of overspray the X-4 has 2200mm high walls on two
sides. More ramps and a third wall can be ordered as an option.
The washbay floor pan directs dirty water and any solids towards the
side of the wash area and into a solids collection tank. Inside the solids
collection tank are three dams that retain the solids but allow the water
to filter through towards an outlet. At the outlet end of the collection
tank is a float switch. When the water reaches a specified level the float
switch activates a diaphragm pump housed in the Filtration Tank. This
pump then sucks the liquid out of the solids collection tank into the
Filtration Tank.
The Filtration Tank then through the use of a number of filters and weirs
filters out the remaining contaminants and lightly chlorinates the liquid
leaving the clean water ready to be reused in the washbay. All the filters
are easily removed and replaced to ensure continuity of service.
When the end user operates their pressure washer the booster pump
housed within the filtration tank activates to supply the pressure washer
with water as required.
Easy to assemble
Easy to disassemble
Easy to remove
